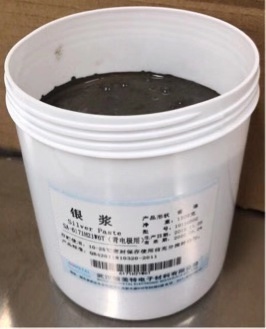

PERC背銀漿料SA-6171D系列
- 產品型號
- 產品描述
描述
產品介紹(Description)
SA-6171D 系列 PERC 背銀漿是我公司推出的一款低耗量、高附著力硅太陽能電池背銀漿料，按照固含量不同可分為 SA-6171D18、SA-6171D62 和 SA-6171D65 等產品，具有優異的附著力、良好的可焊性和耐焊性、寬的燒結工藝窗口、卓越的抗老化能力和電池轉換效率高等優點。
SA-6171D Series PERC Ag Paste is a new perc rear side silver paste series for silicon solar cells. According to solid content, it is divided into SA-6171D18，SA-6171D62 and SA-6171D65. This paste has some characteristics such as good soldered adhesion, excellent solderability, wide co-firing process window and outstanding anti-aging ability. Solar cells made by using SA-6171D will have a higher efficiency.
技術參數(Specifications)
|
產品型號(Type) |
SA-6171D18 |
SA-6171D62 |
SA-6171D65 |
|
粘度(Viscosity)/Pa.s |
10-50* |
||
|
粒徑(Fineness of grind)/μm |
≤ 15 |
||
|
固含量(Solid content) |
58±3 |
62±3 |
65±3 |
|
燒結厚度(Fired thickness)/μm |
5-10 |
||
|
方阻(Resistivity) /(milliohms/square) |
≤ 6.0mΩ |
||
|
轉換效率(Efficiency) |
≥ 22% |
||
|
開路電壓(Open voltage)/Voc |
≥ 680mV |
||
|
附著力(Adhesion)/N |
≥ 3 |
||
*：可根據客戶需求做出調整(Adjustments can be made according to customer needs)
使用工藝(Process)
絲網(Screen printing)： 250-300 目(250-300 mesh)
烘干溫度(Drying): 120-200℃/5-10min(circulating air oven),180-250℃/30s-2min 燒結工藝(Firing conditions)：
溫 度 (Temperature)： 720-800℃ 處理時間(Annealing time)： 1-3s
升溫速度(Increasing speed)： 10-15℃/s 降溫速度(Cooling rate)： 20-30℃/s
儲存和存儲期（ Storage and Shelf Life）
密封避光狀態保存， 5-25℃， 六個月。 Stored in a clean, stable environment at ambient
